Why Pencils Write: The Science of Graphite

Why in the news?

A detailed explanation of why pencils can write, focusing on graphite’s unique atomic structure, highlights the interplay of carbon atoms and condensed matter physics in everyday materials.

Why Pencils Write: The Science of Graphite

Composition of a Pencil Core:

  • The core of a pencil is made of graphite, a form of carbon.
  • Unlike diamonds, where carbon atoms are tightly bonded in a rigid structure, graphite’s carbon atoms are arranged in layers, called graphene.
  • These layers are weakly bonded to each other, allowing them to slide off easily.

Mechanism of Writing:

  • Writing occurs as layers of graphite transfer from the pencil onto the paper.
  • The act of pressing the pencil on paper forces the upper layers of graphene to slide off and adhere to the surface.
  • This sliding mechanism is what differentiates graphite from materials like diamonds, whose tightly bound structure prevents them from transferring atoms.

The Science Behind the Process:

  • The unique arrangement of carbon atoms in graphite makes it black and soft, ideal for leaving visible marks.
  • This phenomenon is rooted in condensed matter physics, which studies how the arrangement of atoms affects material properties.
  • Graphite’s behaviour serves as an example of how different atomic structures lead to varied material characteristics, even when composed of the same element.

What is Graphite?

  • About:
  • Graphite is a naturally occurring carbon-based mineral.
  • It is one of the three crystalline forms of carbon, alongside diamond and amorphous carbon (e.g., charcoal).
  • Structure:

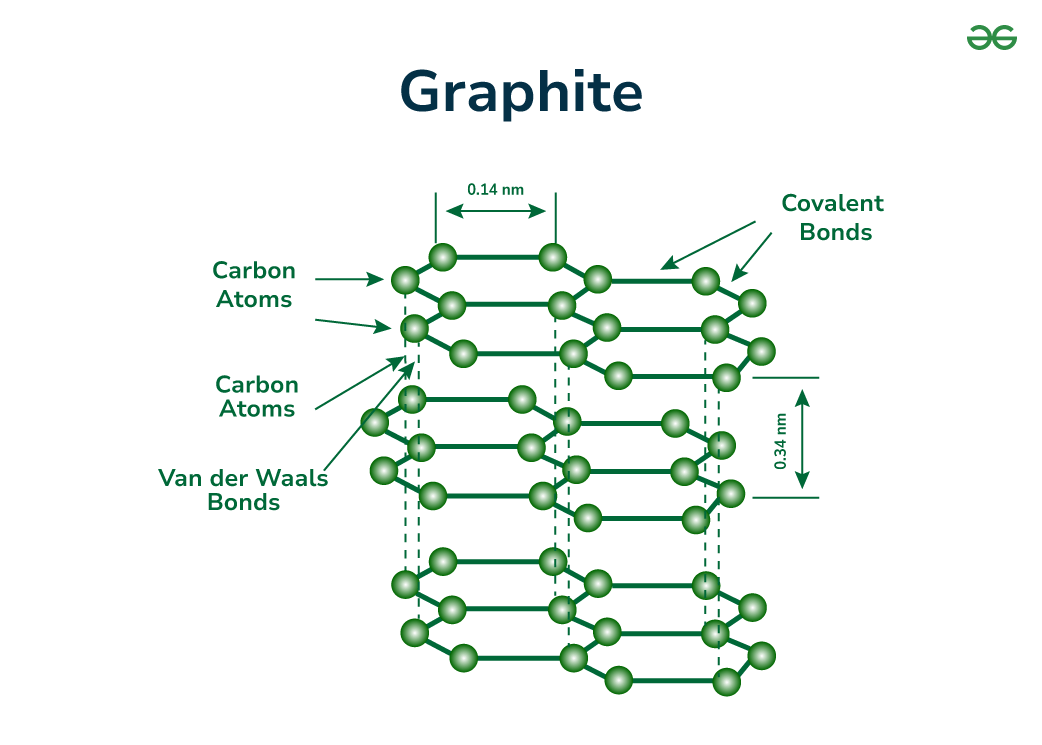

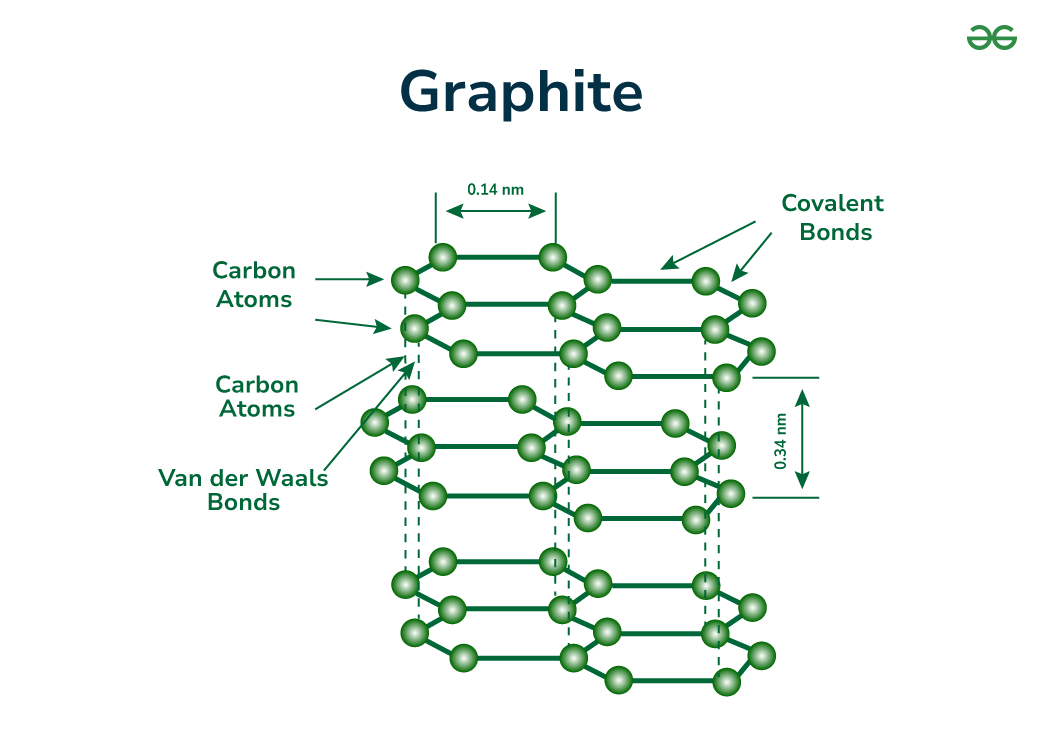

  • Composed of carbon atoms arranged in hexagonal sheets.
  • Layers are weakly bonded, enabling them to slide past one another.
  • Properties:
  • Excellent conductor of electricity and heat.
  • Offers lubricating properties due to its sliding layers.
  • Applications:
  • Used in pencils (graphite and clay mix).
  • Employed in batteries, electric motor brushes, crucibles, and nuclear reactor cores.
  • Global Reserves:
  • Turkey and Brazil hold 50% of global natural graphite resources.
  • China ranks third with 16%, followed by Madagascar (7.9%).

Sources Referred:

PIB, The Hindu, Indian Express, Hindustan Times
